Each Genuine APW Part Is designed and made to maintain your water jet cutter super performance in its whole life time
Our engineers' innovations are not only in water jet cutting machine but also in water jet cutter parts, which are updated, optimized, and breakthrough every year.

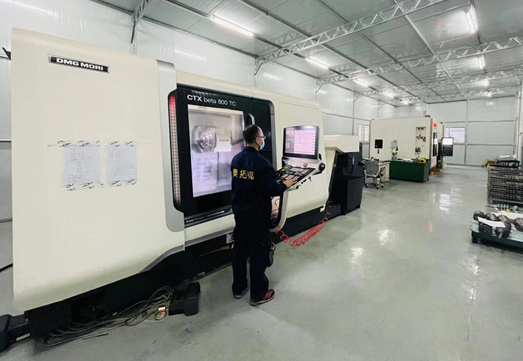

We leverage the advantages of the entire production process, including design, manufacturing, assembly, and testing, and follow the PDCA continuous improvement quality control procedure to ensure the safety, efficiency, and stability of your water jet cutter from multiple aspects such as materials, styling, processes, and interconnectivity.
one-year or 2000 working time water jet spare parts bag
| No. | Name | BOM Code | Useful life | Qty | image |
| 1 | cutting head(set) | 1000H | 1 |  | |

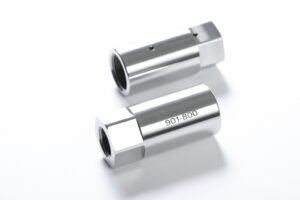

| 2 | on/off valve body | 06S-02-01 | 1000H | 1 |  |

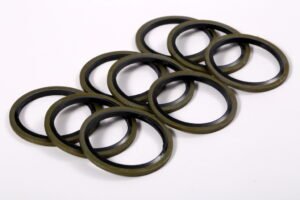

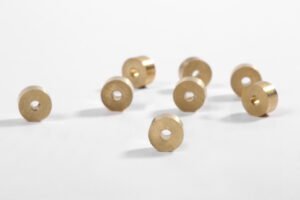

| 3 | gasket | 06S-02-03 | 200-500H | 4 |  |

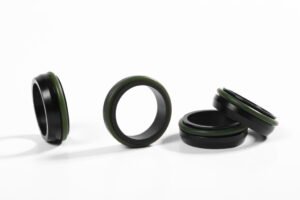

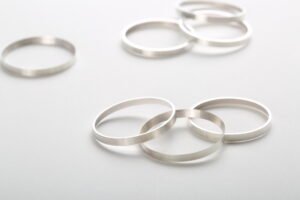

| 4 | high pressure valve seal | 06S-02-04 | 200-500H | 4 |  |

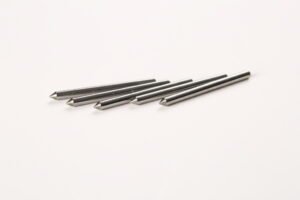

| 5 | needle | 06S-02-05 | 200-500H | 4 |  |

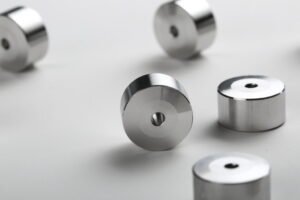

| 6 | poppet seat | 06S-02-06 | 200-500H | 4 |  |
| 7 | o-ring | AS568-006 | 200-500H | 4 |  |
| 8 | nozzle body | 06S-02-07 | 1000H | 1 |  |

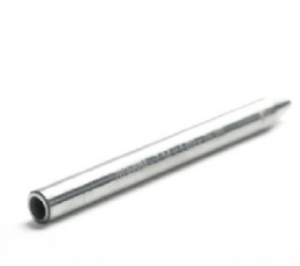

| 9 | abrasive pipe-8/5 | 5 | |||

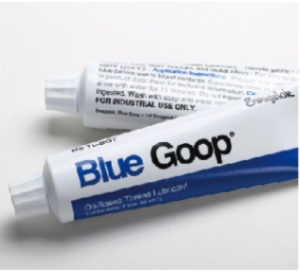

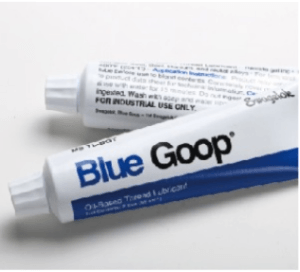

| 10 | blue goop | 1 |  | ||
| 11 | orifice | 50H | 15 |  | |
| 12 | nozzle | 1227-1-40 | 100H | 10 |  |

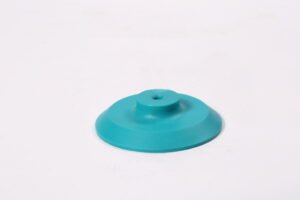

| 13 | dust guard | DT-YT-10-2 | 500-800H | 2 |  |
| 14 | dust guard(5 axis) | 500-800H | 2 |  | |
| 15 | seal plunger | 200-500H | 4 |  | |

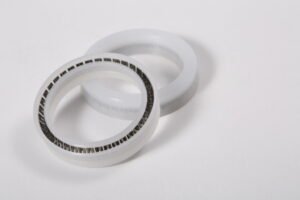

| 16 | U-ring | 200-500H | 4 |  | |
| 17 | check valve main body | G12020 | 500H | 1 |  |
| 18 | poppet | 12030 | 500H | 4 |  |
| 19 | insert | 12021 | 500H | 4 |  |

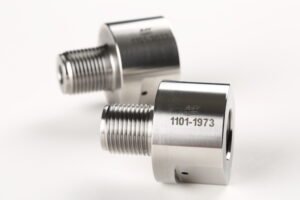

| 20 | outlet check valve | 12028 | 500H | 1 |  |
| 21 | seal ring | 06A-01-13 | 500H | 1 |  |

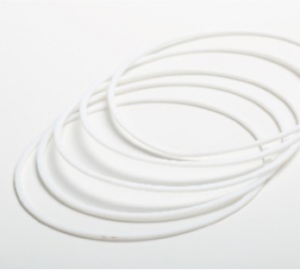

| 22 | o-ring-33.5*2.65 | 200-500H | 6 |  | |
| 23 | o-ring-8*1.9 | 200-500H | 6 | ||
| 24 | o-ring-26.05*1.8 | 200-500H | 6 | ||
| 25 | o-ring-40*3.1 | 200-500H | 6 | ||
| 26 | o-ring-9*1.* | 200-500H | 6 | ||
| 27 | assembly gasket-14 | φ14 | 200-500H | 6 |  |
| 28 | assembly gasket-18 | φ18 | 200-500H | 6 | |
| 29 | assembly gasket-33 | φ33 | 200-500H | 6 | |

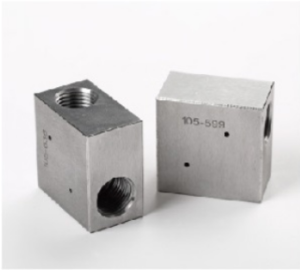

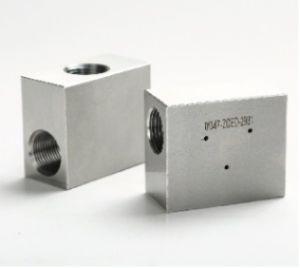

| 30 | tee for accumulator | 05A-07-10 | 1000H | 1 |  |
| 31 | two-way | 05A-07-04 | 1000H | 2 |  |

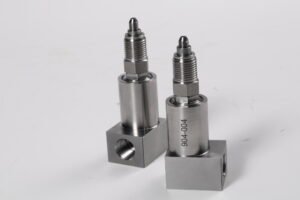

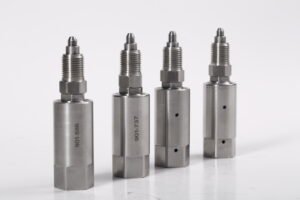

| 32 | Swivel Joint1 | 200-500H | 1 |  | |
| 33 | Swivel Joint2 | 200-500H | 1 |  | |
| 34 | Inlet Poppet housing | 200-500H | 1 |  | |
| 35 | Nut Bolt | 200-500H | 1 |  | |
| 36 | Lock Nut | 50-100H | 2 |  | |

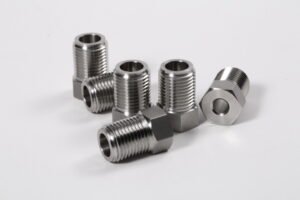

| 37 | gland nut (small) | GYSXT-9-2 | 4 |  | |
| 38 | gland nut | G3016 | 4 |  | |

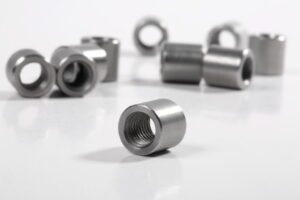

| 39 | HP threaded sleeve(small) | GYSXT-12-1 | 4 |  | |
| 40 | HP threaded sleeve | 05A-07-03 | 4 |  | |

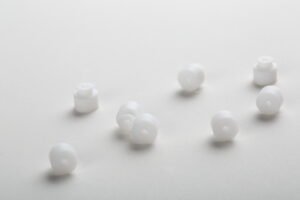

| 41 | back-up ring | 06A-01-05 | 200-500H | 4 |  |

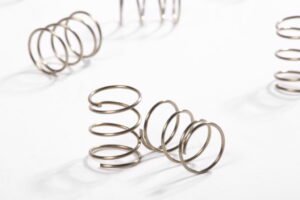

| 42 | outlet check valve spring | P7001 | 500-800H | 4 |  |

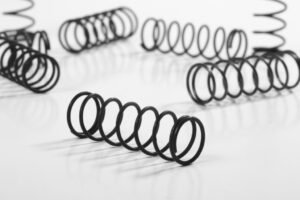

| 43 | spring | 06A-01-03-06 | 500-800H | 4 |  |

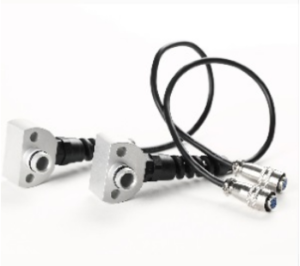

| 44 | sensor(set) | 1 |  |
