Stone cutting choice

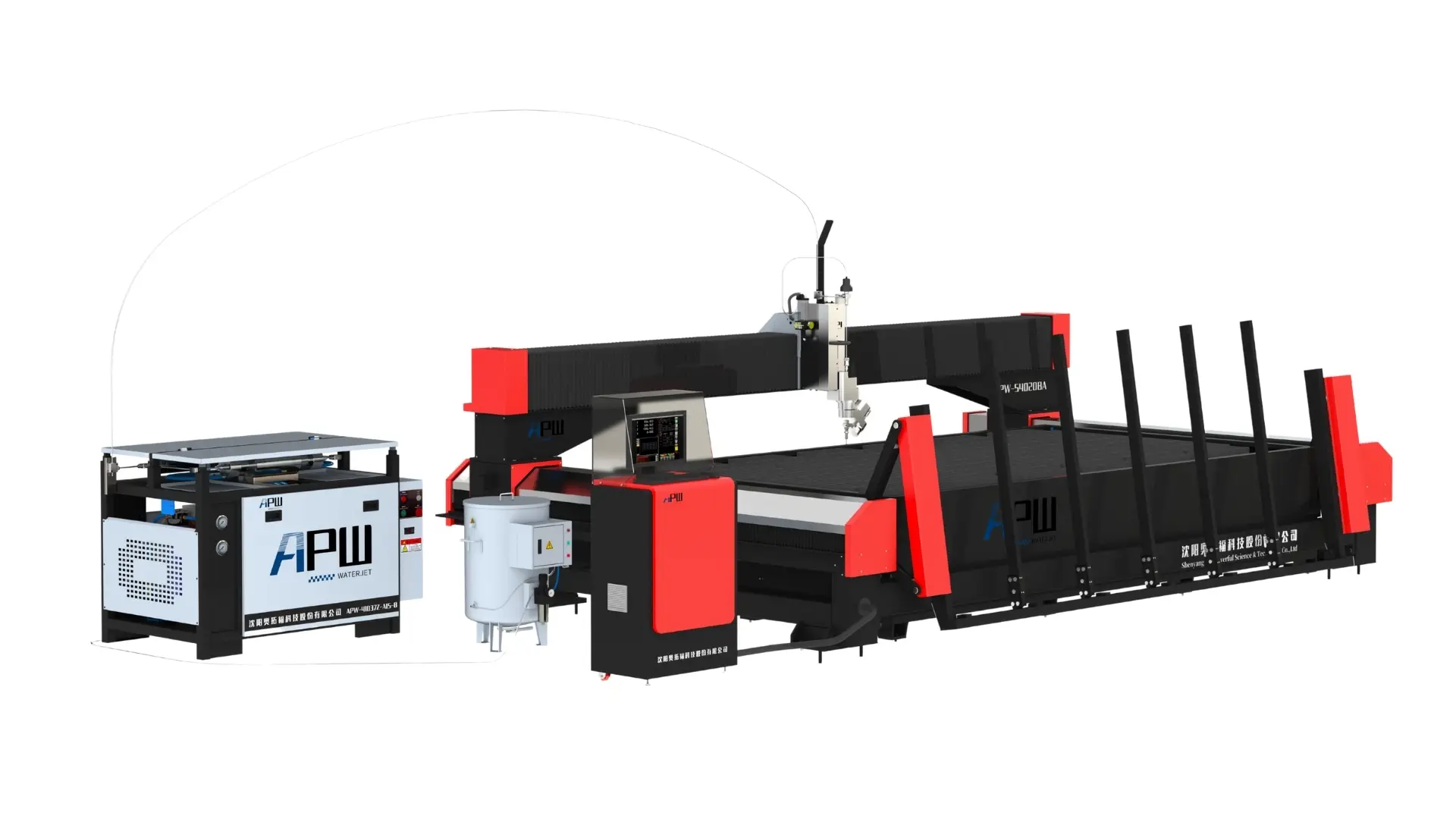

APW-A15-B-S4020-DXACWZ
> Table Size: 4m(X axis)*4m(Y axis)
> Pump Power: 37KW, 3.7L/min HP Flow
> Cutting Head: 5 Axis, 150mm Z-travel, 0.33 Nozzle, Pure water or abrasive swifts flex
Application: heavy material cutting industries
Customer industries: Stone Cutting / thick Metal Sheet cutting
Choose Reason: Big loading capacity / Standing Up-loading lifter / 5 axis
Stone Cutting Water jet Details
Table
- suit for most of raw materials
- 4m(X axis)*2m(Y axis)
- Cutting Accuracy: 0.1mm
- Repeatability: 0.03mm
- Traverse Speed: 10m/min
- Load Capacity: 1000KG/㎡
- Grid grille
- The optimized gantry structure, combined with smooth guide rails, achieves a perfect balance among stability, high precision, and the operating speed of the cutter head.
Pump
- Power Rate: 37KW
- Electricity Supply: AC380V 50HZ 3PH
- Max.Pressure: 420MPa
- HP Water Flow Rate: 3.7L/min
- 0.33mm nozzle（jet diameter）
- Accumulator: 1.2L
- Oil Tank: 114L
- Size: 1710*1025*1191mm
- Weight: 980KG

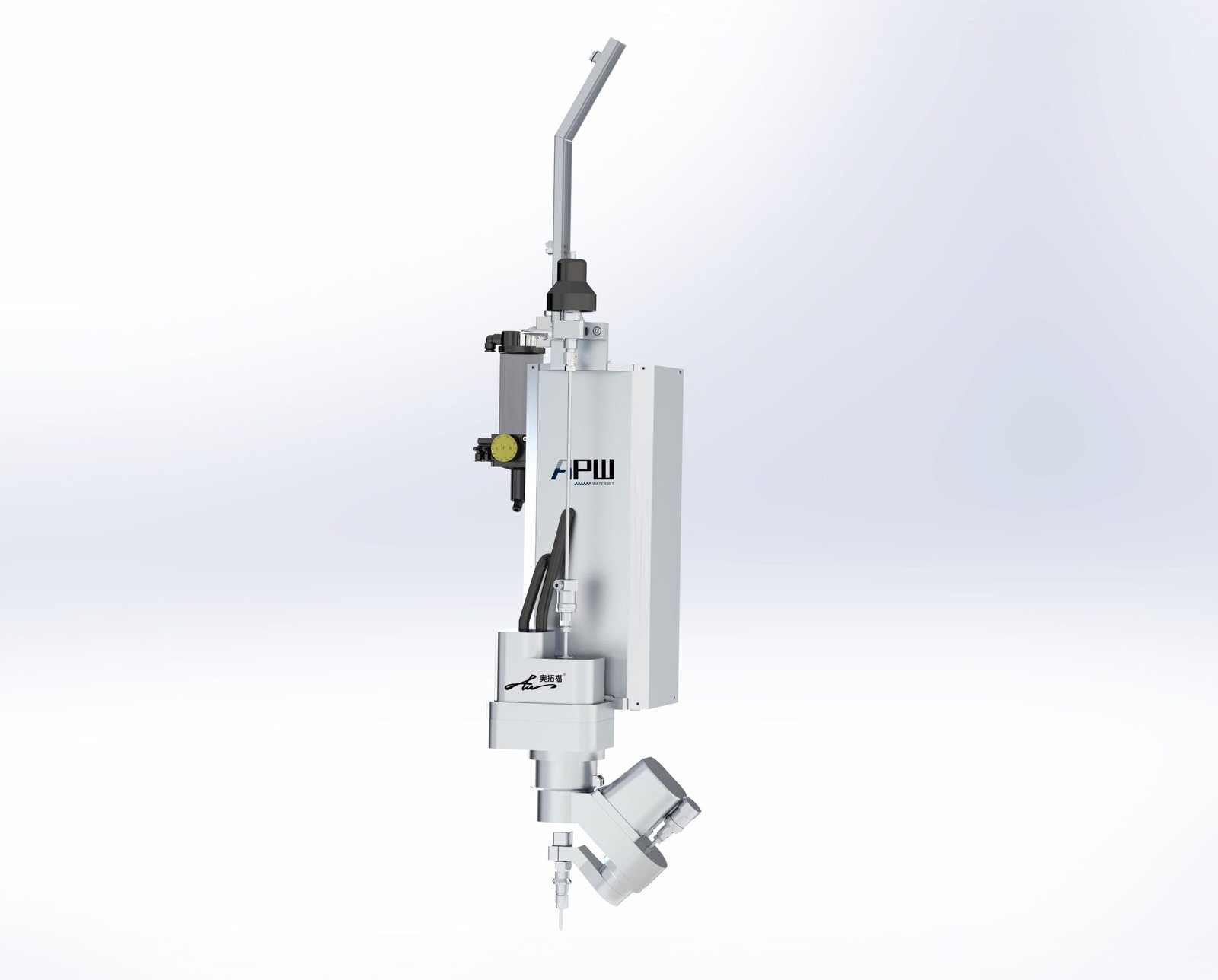

Head
- 5 axis head
- 150mm Z-travel
- pure water or abrasive swifts flex
Friendly
- Facilitating loading and reducing labor intensity
- a flat and sturdy table lowers the breakage rate of large-sized ceramic tiles.
Feedback
- The model with the highest sales volume and consultation volume in Australia, New Zealand and Italy.
Cost
- All spare parts are of universal models and easy to purchase.
- The grid grate has higher hardness and is more resistant to cutting, reducing the replacement frequency.
- The controls for head-mounted components such as laser detectors have been integrated into the standard operating system, requiring no additional payment.
| Structure Type | Optimized Bridge Style |
| Way of Drive | AC Servo |
| Power Supply | AC 220V, 50Hz/60Hz |
| Total Power | <6.79HP / 5KW |
| Load Capacity | 1000KG/m2 |
| Control Accuracy | ±0.01mm |
| Positioning Accuracy | ±0.04mm/1000mm |
| Repeatable Positioning Accuracy | ±0.05mm |
| Cutting Speed | <3m/min |
| X axis Max. Moving Speed | 10m/min |
| Y axis Max. Moving Speed | 10m/min |
| Z axis Max. Moving Speed | 1m/min |
| Table Material | Stainless steel |
| Thickness | 3mm |
| More Table Sizes Available | |||
| Bridge-BA | X Axis Travel mm | Y Axis Travel mm | Z Axis Travel mm |
| 3020BA | 3000 | 2000 | 150 | 4020BA | 4000 | 2000 | 150 |
Pump
| General | |
| Main Motor Power | 50HP/37KW |
| Max. Working Pressure | 420Mpa/60000PSI |
| Continuous Working Pressure | 360-380Mpa |
| Max. Water Discharge | 3.7L/min |
| Max. Orifice Available | 0.33mm |
| Power Supply | 380V/50Hz/3PH |
| Noise Level | 75db(A) |
| Size | 1710*1025*1191mm |
| Weight | 980KG |
| Cutting Water System | |
| Min. Inlet Cutting water | 16L/min |
| Min. Inlet Cutting Water Pressure | 0.24Mpa |
| Accumulator Volume | 1.2L |
| Hydraulic System | |
| Max. Hydraulic Pressure | 20Mpa/2900PSI |
| Oil Tank Capacity | 114L |
| Cooling System | |
| Min. Inlet Cooling Water | 12L/min |
| Min. Inlet Cooling Water Pressure | 0.3Mpa |
Head
| Type | 5-axis |
| Z axis Travel | 150mm |
| A axis tile angle | ±89 |
| B axis tile angle | 0 |
| C axis tile angle | ±180 |
Control System
| Name | NC-Studio |
| Features | |
| Easy use | |
| Low study cost | |
| Multiple O-Point settings | |
| Built-in CAM, NCEditor | wear-and tear part management |
| Supports multiple process settings | bridging/micro-linking/chamfering/ beveling/sorting/ vertical |
| supports the linkage of various auxiliary functions | laser height detection, edge-finding, barcode scanner reading, drill bit lifter |
| ceramic sink cutting treatment | visual contour extraction |
| machine tool management | |
| nesting |
| Main windows | |
| Title bar | |
| Menu bar | file/workmode/operate/machine tool/windows/language/help/params |
| CNC status bar | operation mode/ system status/ running status/WCS/ machining time/ system configuration/ system propts |
| Machine tool control bar | axis coor/ feedrate/ pot control area |
| Operational button bar | execute related operations |
| Function windows | POS/INFO/POS DIAG/ IO port/log/setting |
Auto Abrasive Delivery System
| General | |
| Max. Inlet Air Pressure | 0.8Mpa |
| Min. Inlet Air Pressure | 0.2Mpa |
| Abrasive Capacity | 270Kg |
| Operating Air Flow | 0.5 m3/min |
| Volume | 590x590x1340mm |
| Power Supply | GC24V |
| Features |
| Self-feeding Control |
| Self sealing |
| Air Valve to prevent jams and breakages |
| Use non-metallic sensor to work acutely and long work life |
