small workshop, perfect fit water jet
APW-2010BB-A15-B-BP
> Table Size: 2m(X axis)*1m(Y axis)
> Pump Power: 37KW, 3.7L/min HP Flow
> Cutting Head: 3 Axis, 150mm Z-travel, 0.33 Nozzle, Pure water or abrasive swifts flex
Application: small workshop, micro-factory, collage lab
Customer industries: carbon fiber cutting / sports equipment cutting / rubber cutting / plastic cutting / customized art decor
Choose Reason: small room need / open space operation / easy loading
Small Workshop Water jet Cutter Details

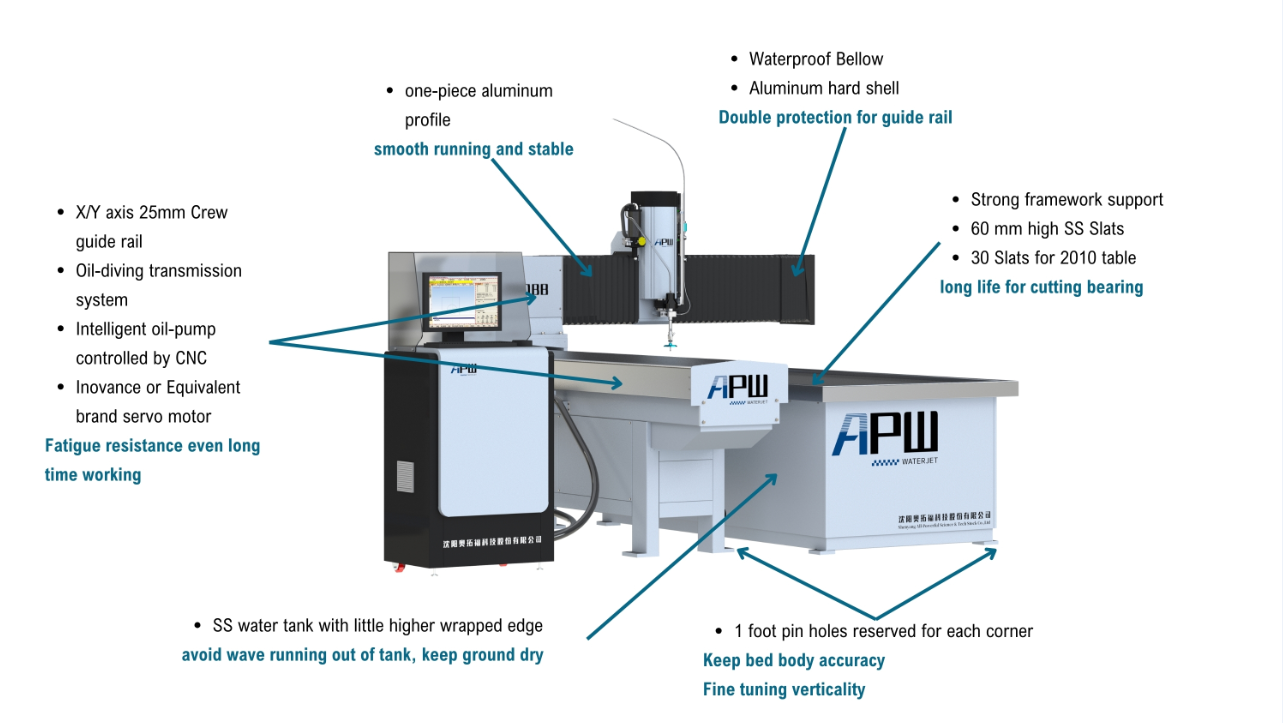

Table
- small workshop , tiny room , micro factory choice
- 2m(X axis)*1m(Y axis)
- Arm like cantilever design and Separate frame and water tank keep stability and reduce the impact on cutting accuracy
- 3 sides uploading

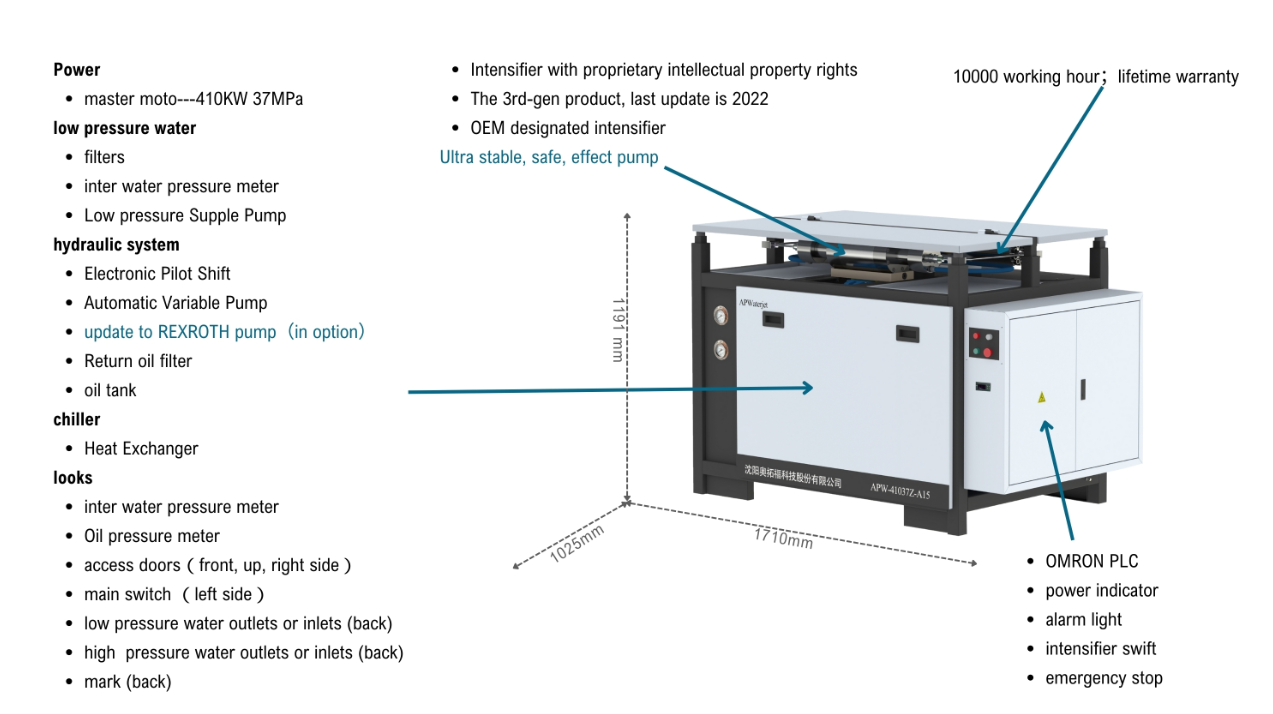

Pump
- Power Rate: 37KW
- Electricity Supply: AC380V 50HZ 3PH
- Max.Pressure: 420MPa
- HP Water Flow Rate: 3.7L/min
- 0.33mm nozzle（jet diameter）
- Accumulator: 1.2L
- Oil Tank: 114L
- Size: 1710*1025*1191mm
- Weight: 980KG
Head
- 3 axis head
- 150mm Z-travel
- pure water or abrasive swifts flex
Friendly
- Fresh man friendly
- easy operation, easy maintenance
Feedback
- Mature technology is capable of handling the vast majority of tasks
- Nearly no complaint
- Best market feedback
Cost
- Small workshop owner, the best water jet should feature low investment, minimal environmental requirements, flexible loading/unloading, and low maintenance.

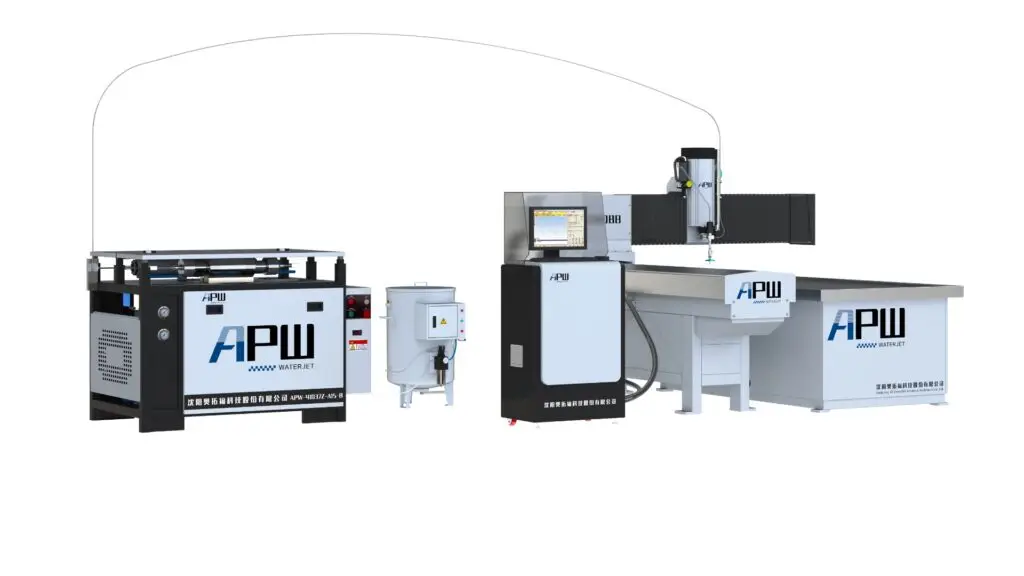

- 5 Parts of equitment combo are all functional
- Best-selling means that as a mass-produced product, it has a fair price, and its accessories and consumables are easy to purchase at reasonable prices.
- Being the most classic product means that the return on investment is very substantia
| Structure Type | Cantiever Style |
| X Axis Travel mm | 2000mm |
| Y Axis Travel mm | 1000mm |
| Z Axis Travel mm | 150mm |
| Way of Drive | AC Servo |
| Power Supply | AC 220V, 50Hz/60Hz |
| Total Power | <6.79HP / 5KW |
| Load Capacity | 500KG/m2 |
| Control Accuracy | ±0.01mm |
| Positioning Accuracy | ±0.04mm/1000mm |
| Repeatable Positioning Accuracy | ±0.03mm |
| Cutting Speed | <3m/min |
| X axis Max. Moving Speed | 10m/min |
| Y axis Max. Moving Speed | 10m/min |
| Z axis Max. Moving Speed | 1m/min |
| Table Material | Stainless steel |
| Thickness | 3mm |
| More Table Sizes Available | |||
| Bridge-BA | X Axis Travel mm | Y Axis Travel mm | Z Axis Travel mm |
| 2015BB | 2000 | 1500 | 150 |
| 3015BB | 3000 | 1500 | 150 |
| 3020BB | 3000 | 2000 | 150 |
| 4015BB | 4000 | 1500 | 150 |
Pump
| General | |
| Main Motor Power | 50HP/37KW |
| Max. Working Pressure | 420Mpa/60000PSI |
| Continuous Working Pressure | 360-380Mpa |
| Max. Water Discharge | 3.7L/min |
| Max. Orifice Available | 0.33mm |
| Power Supply | 380V/50Hz/3PH |
| Noise Level | 75db(A) |
| Size | 1710*1025*1191mm |
| Weight | 980KG |
| Cutting Water System | |
| Min. Inlet Cutting water | 16L/min |
| Min. Inlet Cutting Water Pressure | 0.24Mpa |
| Accumulator Volume | 1.2L |
| Hydraulic System | |
| Max. Hydraulic Pressure | 20Mpa/2900PSI |
| Oil Tank Capacity | 114L |
| Cooling System | |
| Min. Inlet Cooling Water | 12L/min |
| Min. Inlet Cooling Water Pressure | 0.3Mpa |
Head
| Type | 3-axis |
| Z axis Travel | 150mm |
| A axis tile angle | 0 |
| B axis tile angle | 0 |
| C axis tile angle | 0 |
Control System
| Name | NC-Studio |
| Features | |
| Easy use | |
| Low study cost | |
| Multiple O-Point settings | |
| Built-in CAM, NCEditor | wear-and tear part management |
| Supports multiple process settings | bridging/micro-linking/chamfering/ beveling/sorting/ vertical |
| supports the linkage of various auxiliary functions | laser height detection, edge-finding, barcode scanner reading, drill bit lifter |
| ceramic sink cutting treatment | visual contour extraction |
| machine tool management | |
| nesting |
| Main windows | |
| Title bar | |
| Menu bar | file/workmode/operate/machine tool/windows/language/help/params |
| CNC status bar | operation mode/ system status/ running status/WCS/ machining time/ system configuration/ system propts |
| Machine tool control bar | axis coor/ feedrate/ pot control area |
| Operational button bar | execute related operations |
| Function windows | POS/INFO/POS DIAG/ IO port/log/setting |
Auto Abrasive Delivery System
| General | |
| Max. Inlet Air Pressure | 0.8Mpa |
| Min. Inlet Air Pressure | 0.2Mpa |
| Abrasive Capacity | 270Kg |
| Operating Air Flow | 0.5 m3/min |
| Volume | 590x590x1340mm |
| Power Supply | GC24V |
| Features |
| Self-feeding Control |
| Self sealing |
| Air Valve to prevent jams and breakages |
| Use non-metallic sensor to work acutely and long work life |
