saving power pump

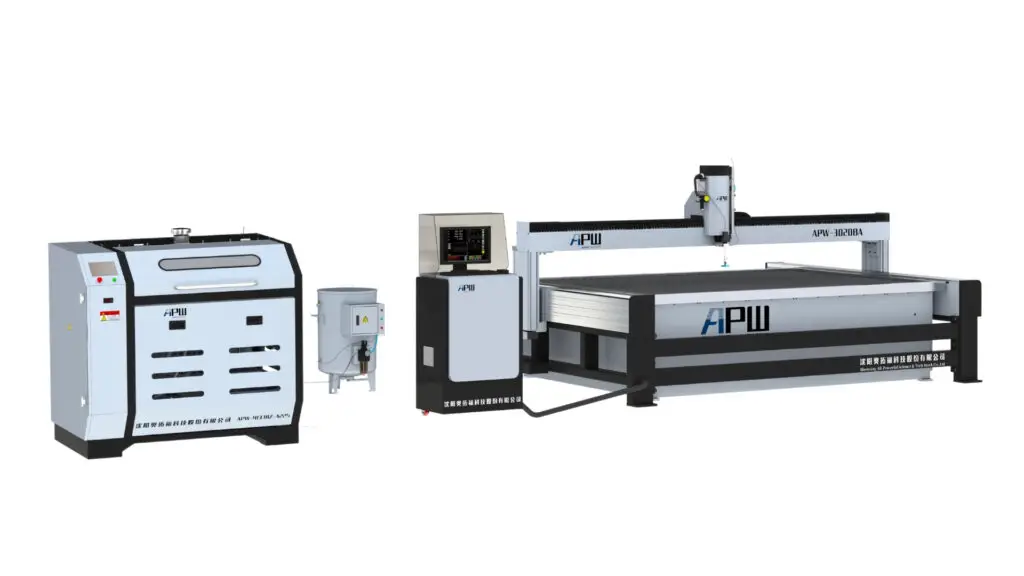

APW-3020BA-a22s-bp
> Table Size: 3m(X axis)*2m(Y axis)
> Pump power: 23.9/ 32.8 / 38.8 / 45 / 75KW, 3.7L/min HP Flow
> Cutting Head: 3 Axis, 150mm Z-travel, 0.33 Nozzle, Pure water or abrasive swifts flex
Application: most cutting industries
Customer industries: glass processing / Multi-hole operation / Long-interval Operation / Small-batch Cutting Operation for Multi-variety or Multi-material Products
Choose Reason: Servo motor / super low power running cost during intensifier breaking / 5 power ratings of motors are available
saving power pump Water jet Cutter Details
Table
- suit for most of raw materials
- 3m(X axis)*2m(Y axis)
- Cutting Accuracy: 0.1mm
- Repeatability: 0.03mm
- Traverse Speed: 10m/min
- Load Capacity: 500KG/㎡

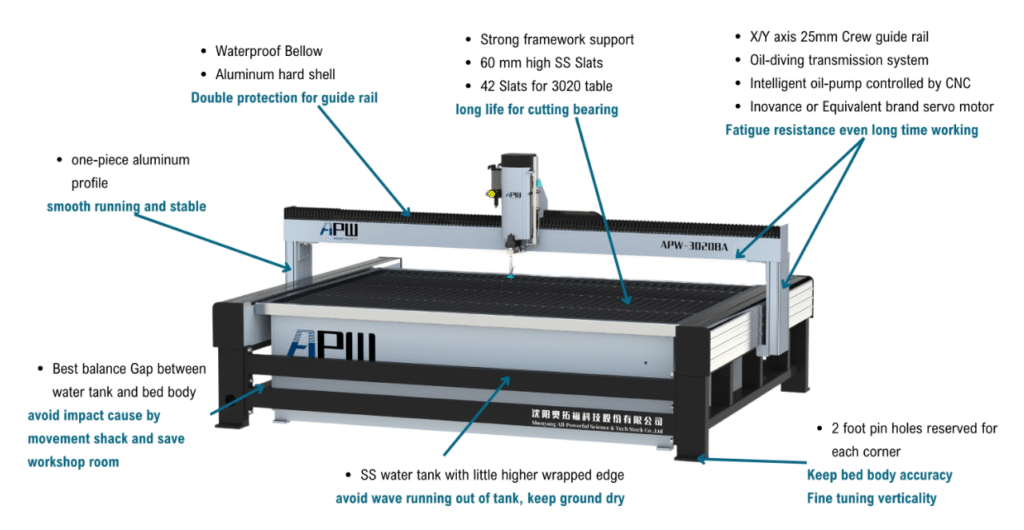

- Bridge like axis runway and Separate frame and water tank keep stability and reduce the impact on cutting accuracy
- 2 sides uploading
- More Size(X*Y, m): 2015 / 3020 / 2040 /3040 /2060 /3050 / 3060
Pump
- Model
- A22S-24 (23.9KW)
- A22S-32 (32.8KW)
- A22S-37 (38.8KW)
- A24W-45 (45KW)
- A24W-75 (75KW)
- Power(KW): 23.9/32.8/38.8/45/75
- Plunger Pump Brand: Rexroth
- Plunger Pumps Count: 1
- Intensifiers Count: 1(S) / 2(W)
- HP Water Flow(L/Min): 3.7(S) / 7.4(W)
- Nozzle(Mm): 0.26/0.3/0.33/0.46
- HP Water Max Pressure(MPa): 360/380/413
- Control Display: Have(S) / None(W)
- Size(Mm): 1715*1045*1272 (S) / 2100*1370*1510(W)
- Weight(KG): 1100 / 1400 / 1700
Head
- 3 axis head
- 150mm Z-travel
- pure water or abrasive swifts flex
Friendly
- Multiple power options ensure optimal matching to different working conditions, reducing costs and enhancing profitability
- The control display on the pump provides a clear overview of the operating status
- easy operation, low maintenance
Feedback
- Enhance the cost-effectiveness of traditional pumps
- Significantly reduce the operational costs associated with downtime
- Upgrade your traditional pumps for better cost-effectiveness and slash downtime costs. If water jet technology is part of your workflow, this solution is engineered to streamline your operations.
high light
Saving power cost ,the AX series high-pressure pump is a representative product in the medium power range, designed for users with high requirements for performance and stability. It uses plunger pumps from internationally renowned brands (such as Rexroth) and has an automatic adjustment function, which can accurately control pressure and flow according to cutting requirements.
The AX series pump has a stable output flow and small pressure fluctuations, ensuring high precision and high efficiency in the cutting process. In addition, its compact design and optimized structure make it perform well in the medium power range and suitable for a variety of complex processing tasks.
- It is suitable for medium-sized processing enterprises, especially in the fields of metal processing, stone cutting, etc. that have high requirements on cutting accuracy and efficiency.
- What would you do to upgrade the classic combo for the first time? If it is the golden age of youth and energy, increasing functionality or convenience is the first choice, but in the era of economic contraction, reducing energy bills is the best choice. Just a small change can bring at least 30% cash flow expenditure. If you punch more holes, the profit will be even greater.
| Structure Type | Bridge Style |
| Way of Drive | AC Servo |
| Power Supply | AC 220V, 50Hz/60Hz |
| Total Power | <6.79HP / 5KW |
| Load Capacity | 500KG/m2 |
| Control Accuracy | ±0.01mm |
| Positioning Accuracy | ±0.04mm/1000mm |
| Repeatable Positioning Accuracy | ±0.05mm |
| Cutting Speed | <3m/min |
| X axis Max. Moving Speed | 10m/min |
| Y axis Max. Moving Speed | 10m/min |
| Z axis Max. Moving Speed | 1m/min |
| Table Material | Stainless steel |
| Thickness | 3mm |
| More Table Sizes Available | |||
| Bridge-BA | X Axis Travel mm | Y Axis Travel mm | Z Axis Travel mm |
| 2015BA | 2000 | 1500 | 150 |
| 2040BA | 2000 | 4000 | 150 |
| 3040BA | 3000 | 4000 | 150 |
| 2060BA | 2000 | 6000 | 150 |
| 3050BA | 3000 | 5000 | 150 |
| 3060BA | 3000 | 6000 | 150 |
Pump
| General | |
| Main Motor Power | 23.9/32.8/38.8/45/75 KW |
| Max. Working Pressure | 360/380/413.7Mpa |
| Continuous Working Pressure | 360-380Mpa |
| Max. Water Discharge | 3.7/7.4 L/min |
| Max. Orifice Available | 0.26 /0.3 /0.33 /0.46 mm |
| Power Supply | 380V/50Hz/3PH |
| Noise Level | 75db(A) |
| Size | 715*1045*1272 (S) / 2100*1370*1510(W) |
| Weight | 1100 / 1400 / 1700 KG |
Head
| Type | 3-axis |
| Z axis Travel | 150mm |
| A axis tile angle | 0 |
| B axis tile angle | 0 |
| C axis tile angle | 0 |
Control System
| Name | NC-Studio |
| Features | |
| Easy use | |
| Low study cost | |
| Multiple O-Point settings | |
| Built-in CAM, NCEditor | wear-and tear part management |
| Supports multiple process settings | bridging/micro-linking/chamfering/ beveling/sorting/ vertical |
| supports the linkage of various auxiliary functions | laser height detection, edge-finding, barcode scanner reading, drill bit lifter |
| ceramic sink cutting treatment | visual contour extraction |
| machine tool management | |
| nesting |
| Main windows | |
| Title bar | |
| Menu bar | file/workmode/operate/machine tool/windows/language/help/params |
| CNC status bar | operation mode/ system status/ running status/WCS/ machining time/ system configuration/ system propts |
| Machine tool control bar | axis coor/ feedrate/ pot control area |
| Operational button bar | execute related operations |
| Function windows | POS/INFO/POS DIAG/ IO port/log/setting |
Auto Abrasive Delivery System
| General | |
| Max. Inlet Air Pressure | 0.8Mpa |
| Min. Inlet Air Pressure | 0.2Mpa |
| Abrasive Capacity | 270Kg |
| Operating Air Flow | 0.5 m3/min |
| Volume | 590x590x1340mm |
| Power Supply | GC24V |
| Features |
| Self-feeding Control |
| Self sealing |
| Air Valve to prevent jams and breakages |
| Use non-metallic sensor to work acutely and long work life |
No.1
The biggest water jet factory of china , 300 sets of water jet per year
Full Production Chain
design-machining-assembly-QC-warehousing-sale-technical support
1800+ Fans
5000+ Water jet Cutters for 1800+Customers in 60+ Countries
No-Stop Forward
Optimization, new types and new patents for water jet every year
